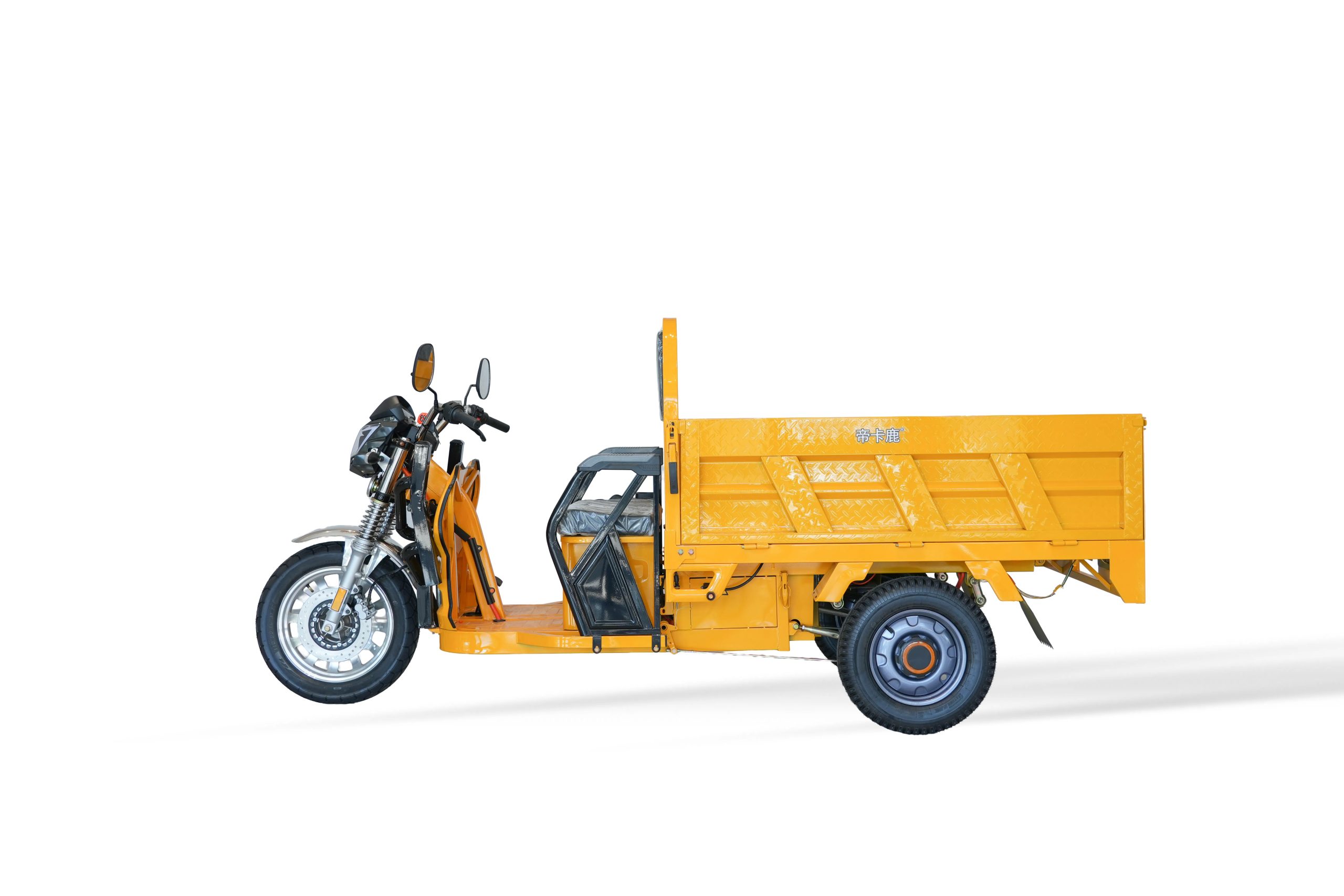

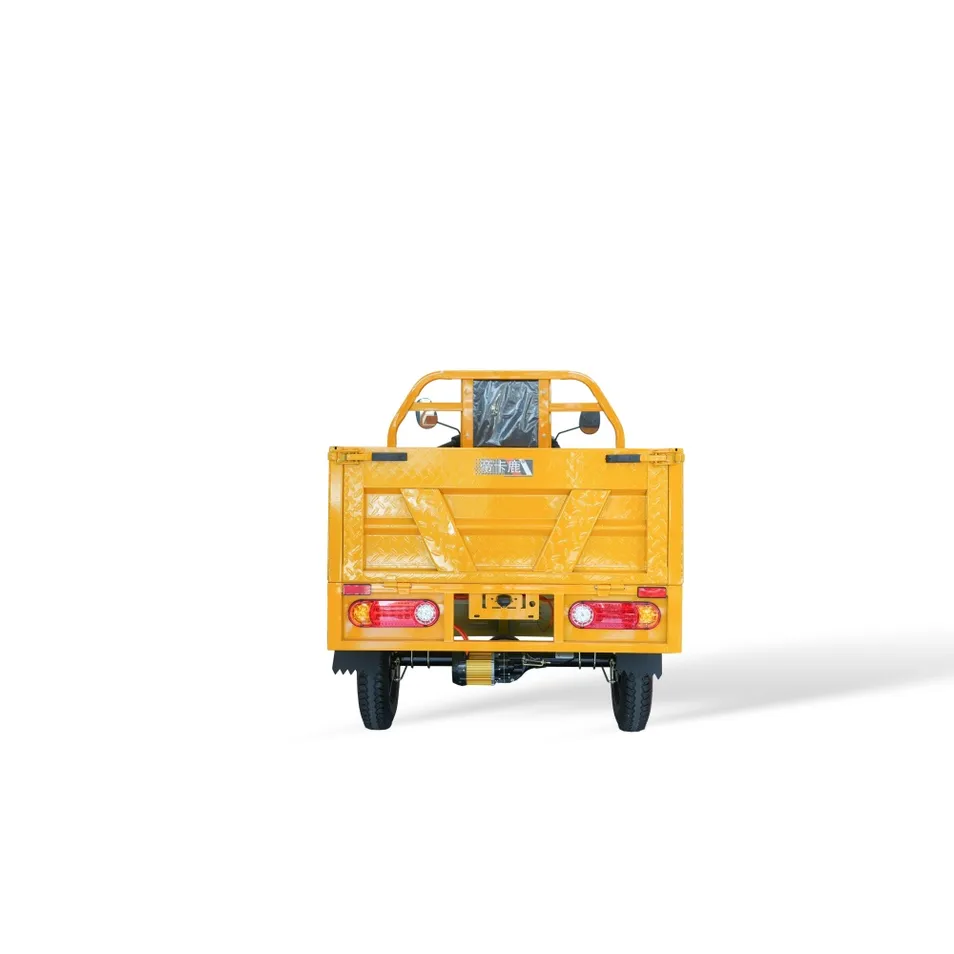

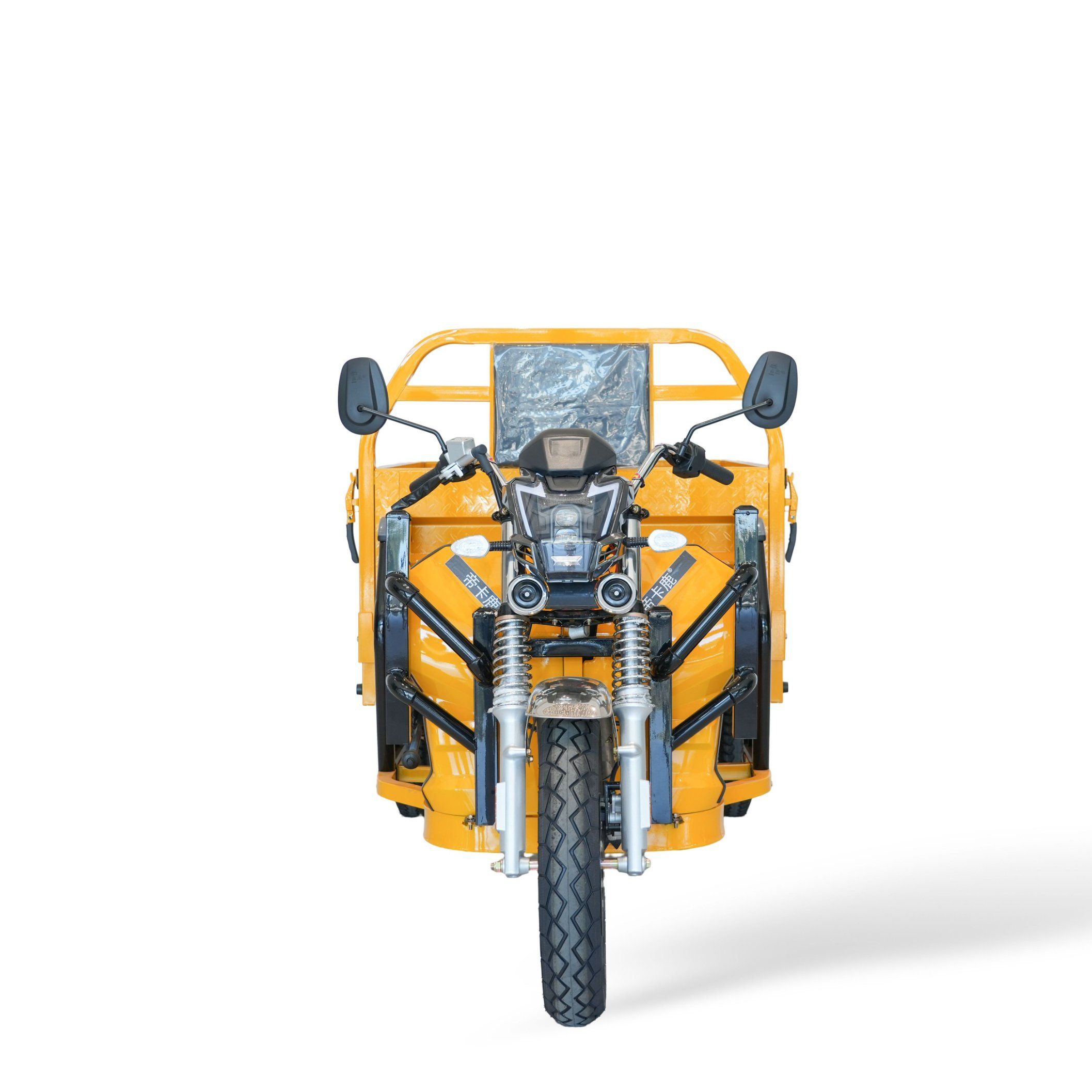

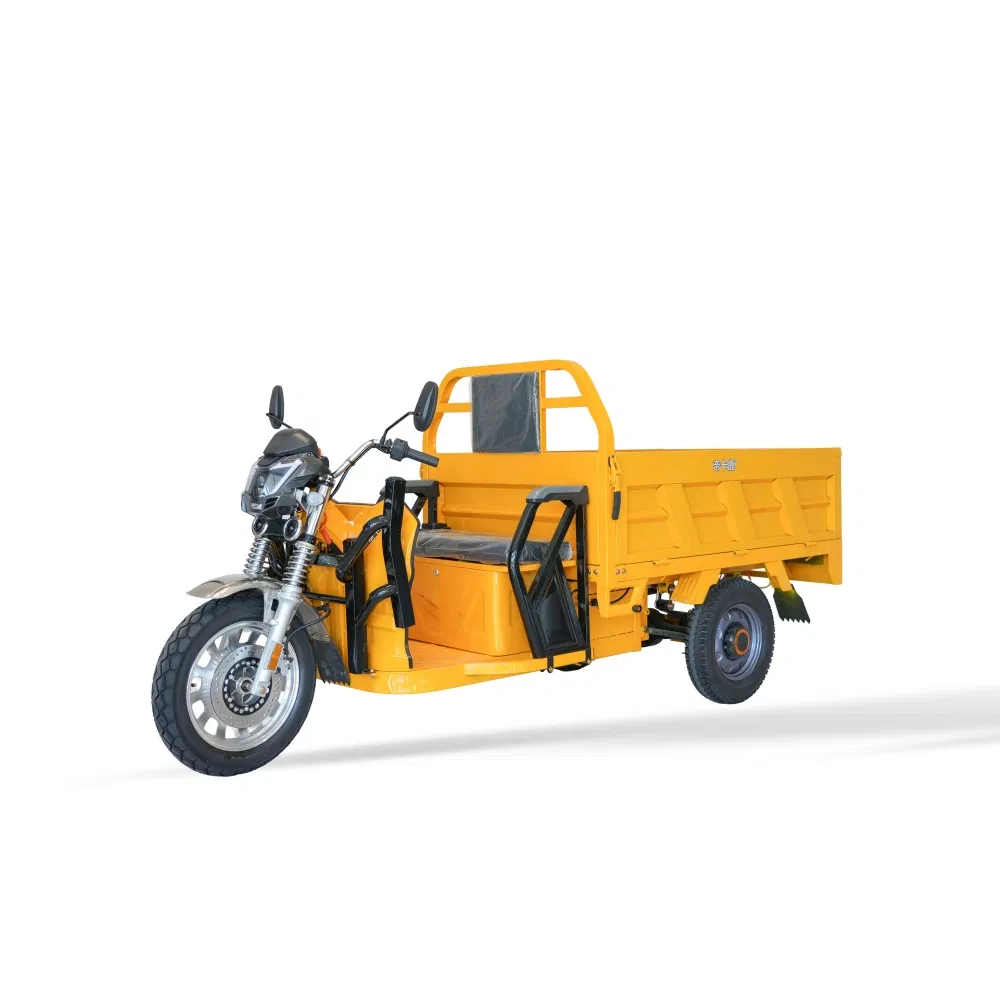

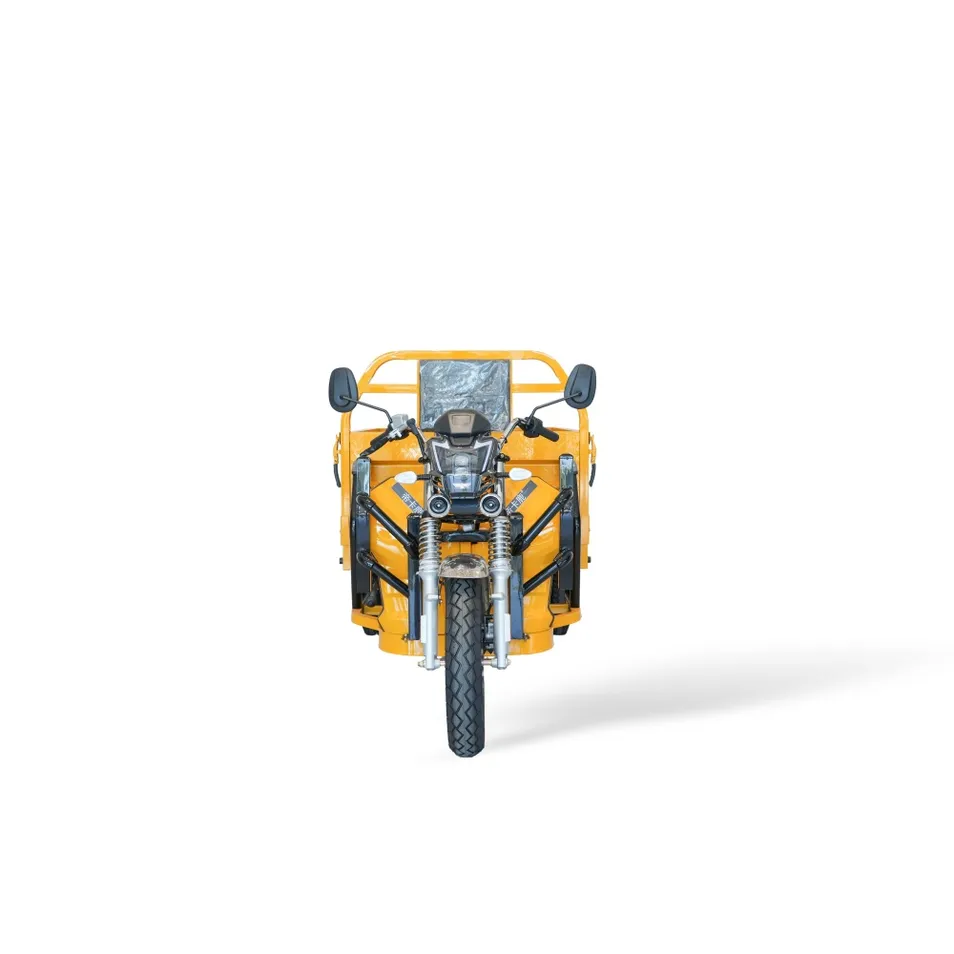

The Spacious 3 Wheel Electric Tricycle with Large Cargo Box Dimensions ships factory direct: battery, charger and a matched spare-parts kit are included, and the price shown already covers worldwide shipping.
Key points
- Adult
- Open
- Cargo And Passenger
- Supplier MOQ 12 Pieces (MOQ) — we ship single units
Specifications
| ZB1124 | ZB1524 | ZB1624 | ZB1624 | ZB1524 SIMPLE SHED | ZB1524 PROhandlebar | |
| size(L*W*H) | 2450*880*1220mm | 2785*1060*1690mm | 3180*1170*1410mm | 3180*1170*1815mm | 2785*1060*1690mm | 3035*1080*1720mm |
| Cargo Box Size | 1080*600 | 1500*1000mm | 1600*1100mm | 1600*1100mm | 1500*1000mm | 1500*1000mm |
| Wheelbase | 1700mm | 2025mm | 2050mm | 2050mm | 2025mm | 2025mm |
| Wheeltrack | 780mm | 850nn | 980mm | 980mm | 850mm | 860mm |
| Motor | ZB1200W60V | ZB1500W72V | ZB1500W72V | ZB1500W72V | ZB1500W72V | ZB1524W72V |
| Shock Absorption | Disc brake shock absorber31 | Outer-spring shock absorber37 | Outer-spring shock absorber43 | Outer-spring shock absorber43 | Outer-spring shock absorber37 | Shock absorber37 |
| Rear axle | Integrated gear-shift rear axle 160 | Heavy-Duty Large-Housing Integrated 2-Speed Rear Axle | Heavy-Duty Large-Housing Integrated 2-Speed Rear Axle | Heavy-Duty Large-Housing Integrated 2-Speed Rear Axle | Heavy-Duty Large-Housing Integrated 2-Speed Rear Axle | Heavy-Duty Large-Housing Integrated 2-Speed Rear Axle |

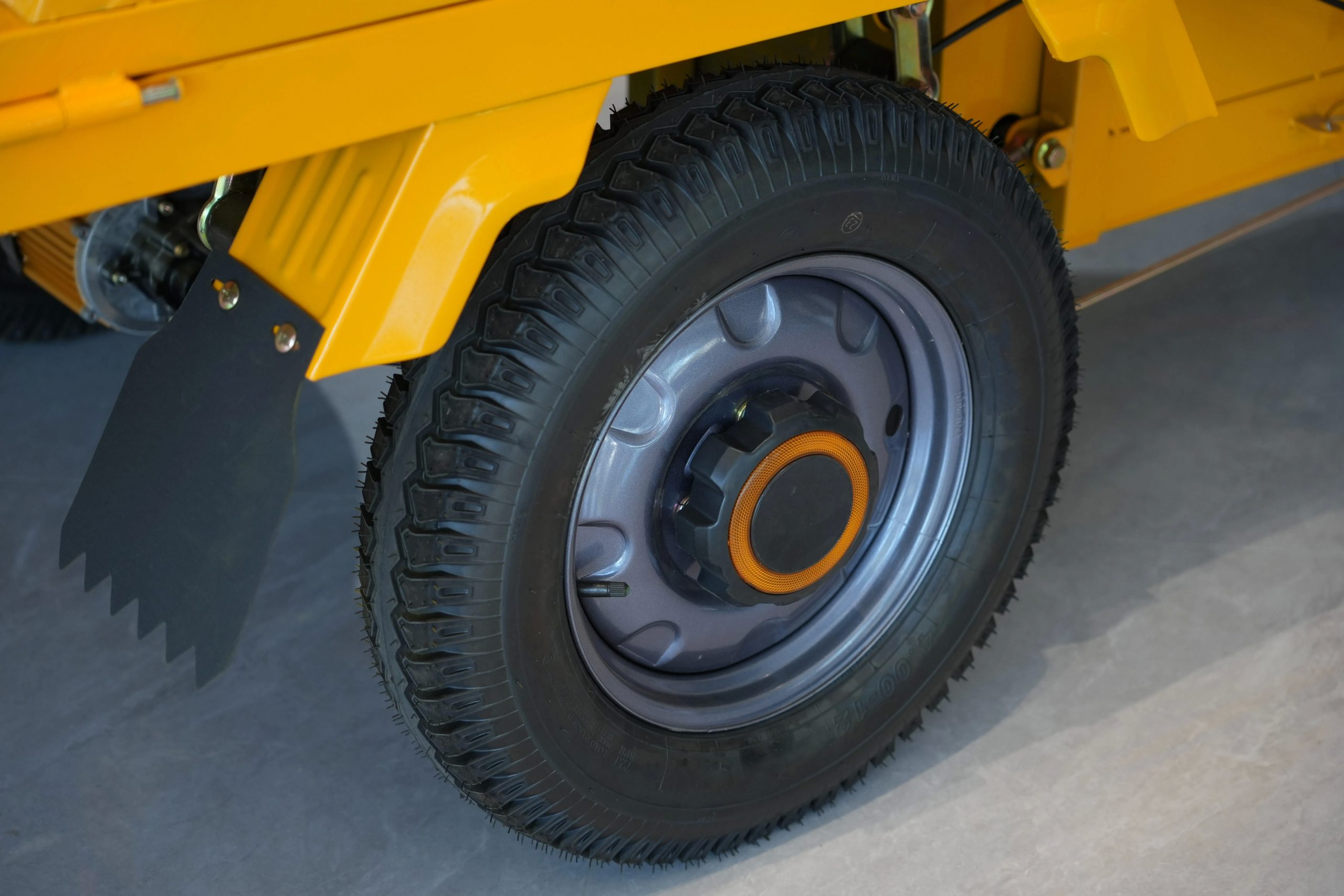

| Tire | 3.00-12/3.00–12 | 3.75-12/4.00–12 | 110/90-16/4.00–12 | 110/90-16/4.00–12 | 3.75-12/4.00–12 | Front/Rear3.75-12/4.00-12 |
| Loading Capacity | 485Kg | 500kg | 600kg | 635kg | 630kg | 776kg |
| Battery | Lead-acid:60V/52AH | 60V1200W | Lead-acid/72V,58Ah | Lead-acid/72V,58Ah | Lead-acid:72V/58AH | Lead-acid:72V/58AH |
| Mileage | 70-100KM | 70-100KM | ||||
| Max Speed | 25km/h | 40KM/H | 40KM/H | 40KM/H | 40KM/H | 40KM/H |
| Control type | Handlebar | Handlebar | Handlebar | Handlebar | Handlebar | |
| Controller(Optional) | YCK060060A | YCK072060A (40km/h) | YCK072060A(40km/h) | YCK072060A(40km/h) | YCK072060A(40km/h) | YCK072060A(40km/h) |
| YCK072060A-1(25km/h) | YCK072060A-1 (25km/h) | YCK072060A-1(25km/h) | YCK072060A-1(25km/h) | YCK072060A-1(25km/h) | ||
| Brake mode(Optional) | Front discRear drum+parkingbrake | Drum brake,CBS | Front disc brakes , Rear drum brakes+Parking Brake | Front disc brakes , Rear drum brakes+Parking Brake | Drum brake,CBS | Drum,CBS+Parking brake |
| Drum brake,Parking brake | ||||||
| Door core(Optional) | Core 1: 150Core | Core 1: 300 Core | Core 1: 300 Core | Core 1: 150 Core | Core 1: 300 Core | |
| Core 2: 300 core | Core 2: 330core | Core 2: 330core | Core 2: 300core | Core 2: 420core | ||
| Simple Canopy Front Bracket (Optional) | Front Bracket 1 | Front Bracket 1 | Front Bracket 1 | |||
| Front Bracket 2 | Front Bracket 2 | Front Bracket 2 | ||||

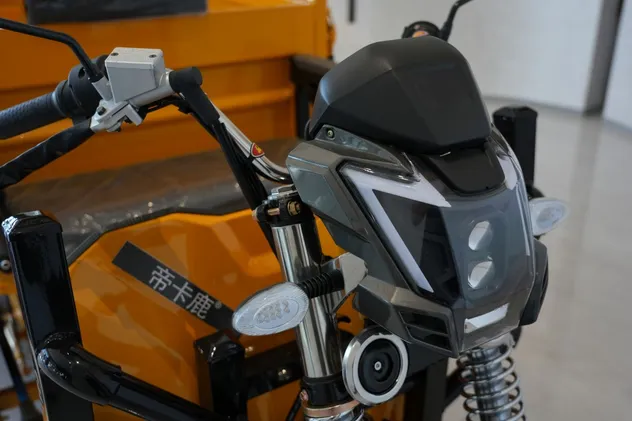

| Front Headlight (Optional) | Wolf-head Headlight | |||||
| Lifan Headlight | ||||||
| Plastic Windshield (Optional) | Yes | |||||
| No | ||||||
| Certificate | EEC | EEC | EEC | EEC | EEC | EEC |
| Color Option | Blue/Red/Yellow/Silver/Grey | Blue/Red/Yellow/Silver/Grey | Blue/Red/Yellow/Silver/Grey | Blue/Red/Yellow/Silver/Grey | Blue/Red/Yellow/Silver/Grey | Blue/Red/Yellow/Silver/Grey |
| Container Loading Qty | CKD/40HQ/90 /unitSKD/40HQ/50 /unitCBU/40HQ/12 /unit | CKD/40HQ/55 /unitSKD/40HQ/28 /unitCBU/40HQ/12 /unit | CKD/40HQ/58 /unitSKD/40HQ/32 /unitCBU/40HQ/12 /unit | CKD/40HQ/55 /unitSKD/40HQ/28 /unitCBU/40HQ/12 /unit | CKD/40HQ/55 /unitSKD/40HQ/28 /unitCBU/40HQ/12 /unit | CKD/40HQ/40 /unitSKD/40HQ/14 /unitCBU/40HQ/12 /unit |
Product details
Delivery & warranty
Free worldwide shipping with delivery in 3–7 working days from the depot nearest you. USDT/USDC and bank transfer accepted at checkout. Motor, controller and battery carry a 12-month warranty, and a spare-parts kit matched to this model ships with the unit.
