Product Description
LCD digital display instrument,front/rear 4.50-12 Steel wire tire,43mm diameter hydraulic shock absorber,Changan integrated afterburner teeth pack rear axle, 180mm brake pot,60V/1500W Permanent Magnet Synchronous Motor,Electric hydraulic dump, simple front windshield, electric wipers, mobile phone charger, spare tire, helmet, air pump

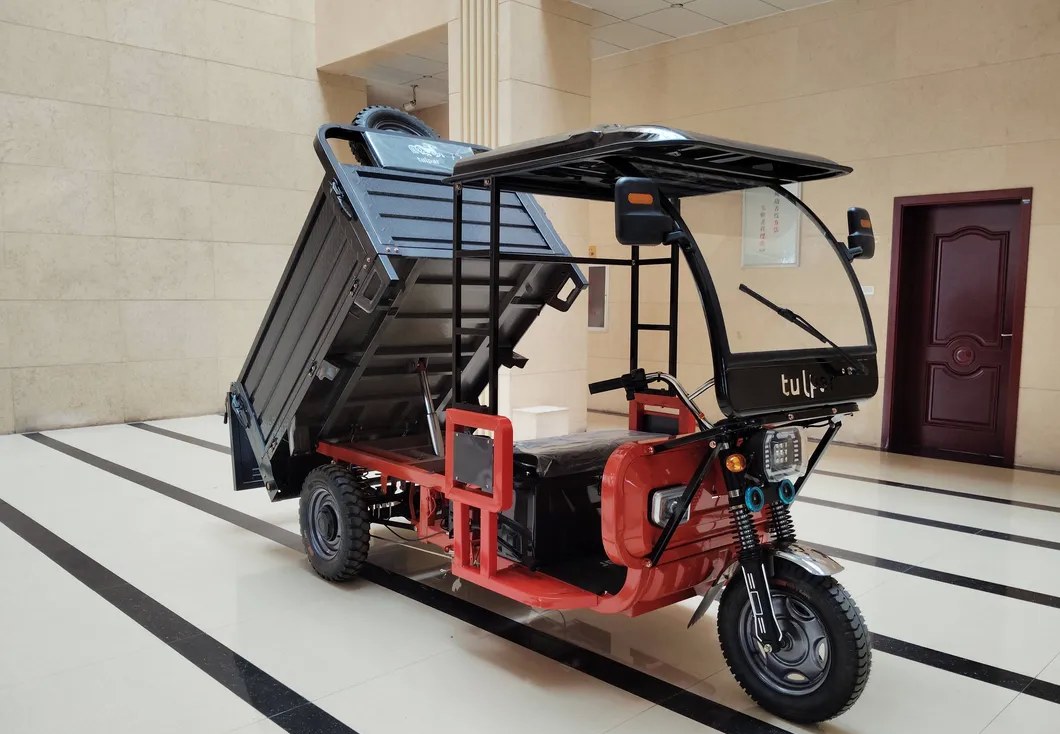

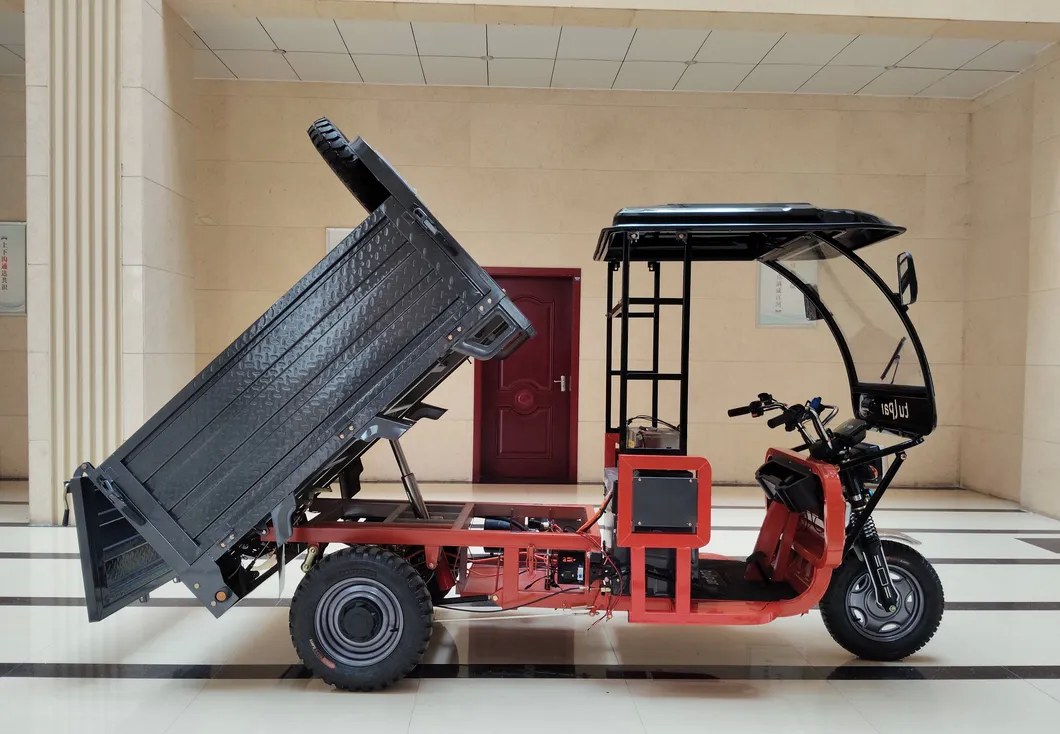

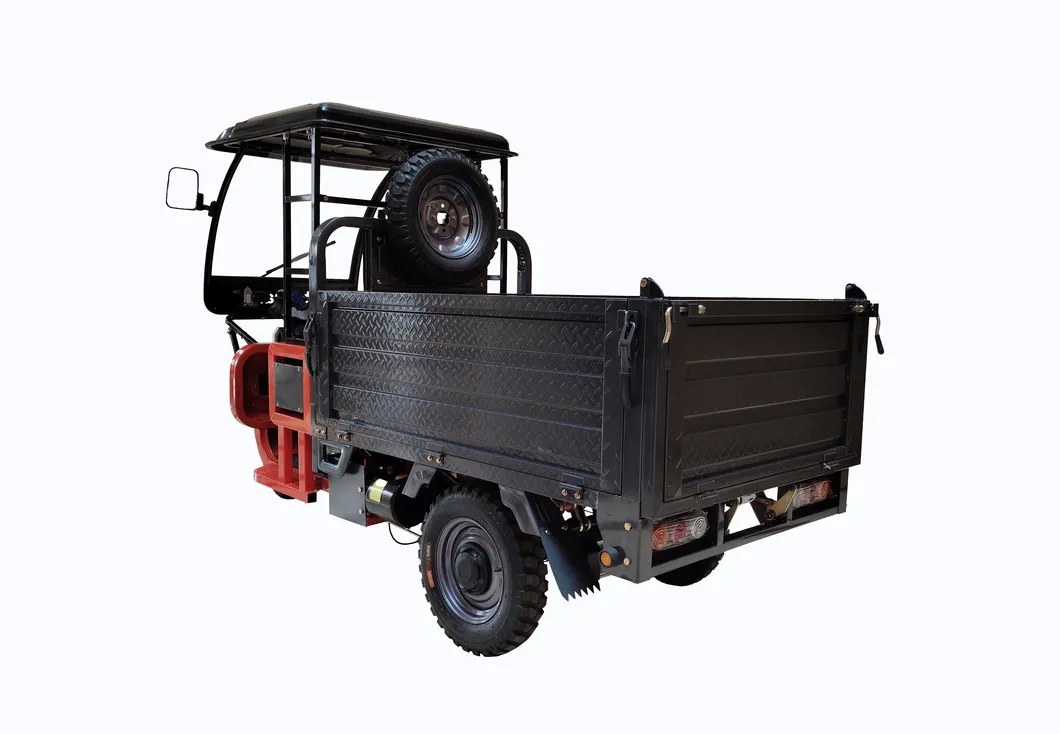

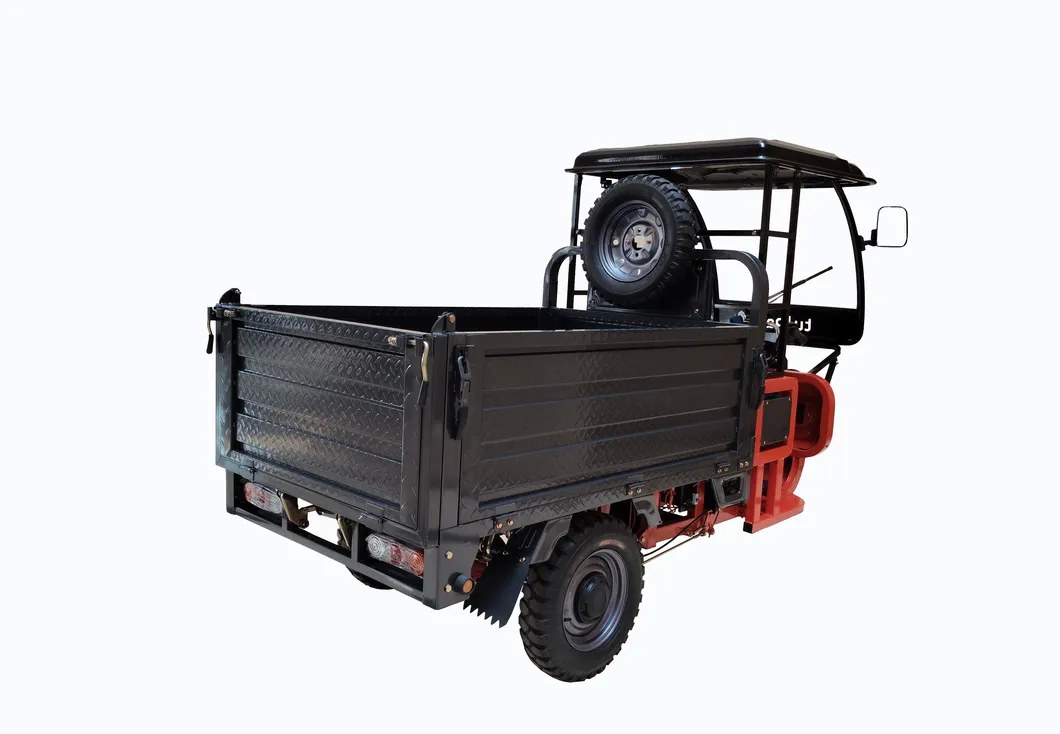

Detailed Photos
Product Parameters
| product name | CJ -DH06 |
| Items | Details |
| Vehicle size(mm) L*W*H: | 2950*1100*1850 |
| Cargo box size (L*W*H) mm: | 1640*1100*510 |
| Wheel base(mm): | 2100 |
| WHeeL Track (mm): | 960 |
| Ground clearance(mm): | 280 |
| Curb weight: | 420kg(Weight including battery) |
| Maximum load capacity: | 900kg |
| Max. Speed(full load): | 40km/h |
| Gradeability(full load): | 20% |
| Continued mileage: | 60-70km |

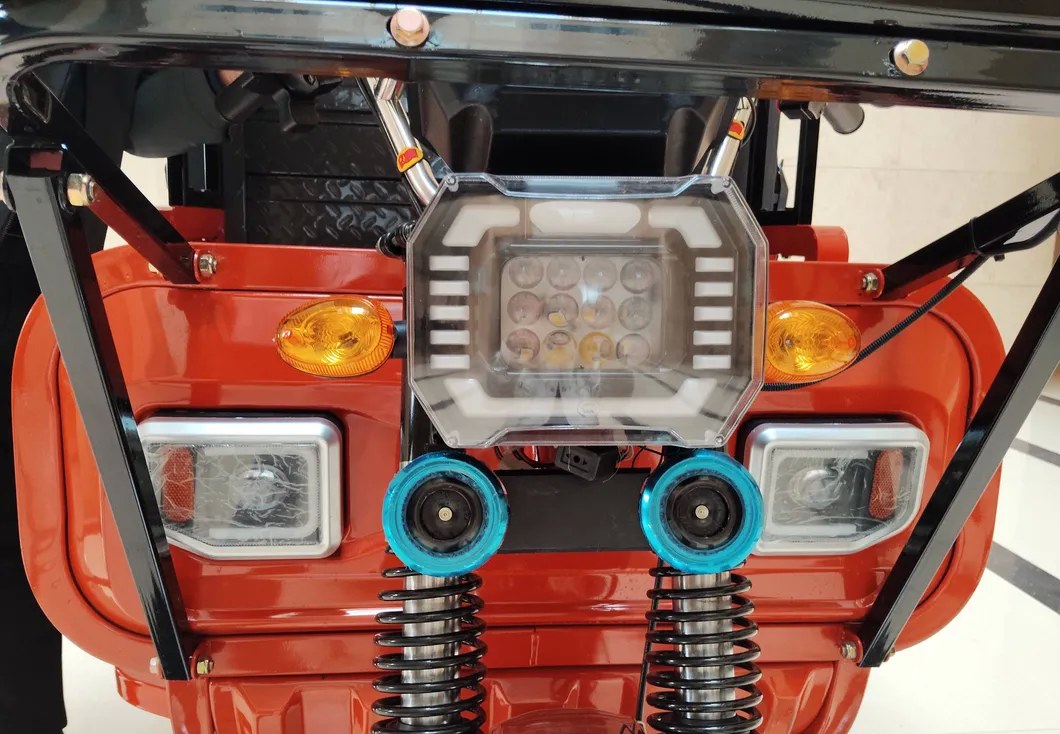

| Headlamp: | LED headlight |
| Motor Meter: | LCD digital display instrument |
| Frame: | 40*60 (mm) keel, 40*60 (mm) rear flat frame |
| Breaks: | Drum Break |
| Grears: | (High and low gear)+(Drive /Reverse) |
| Tyres model: | front/rear 4.50-12 Steel wire tire |
| Front Damper: | 43mm diameter hydraulic shock absorber |
| Rear Damper: | Cylinder spring damper |

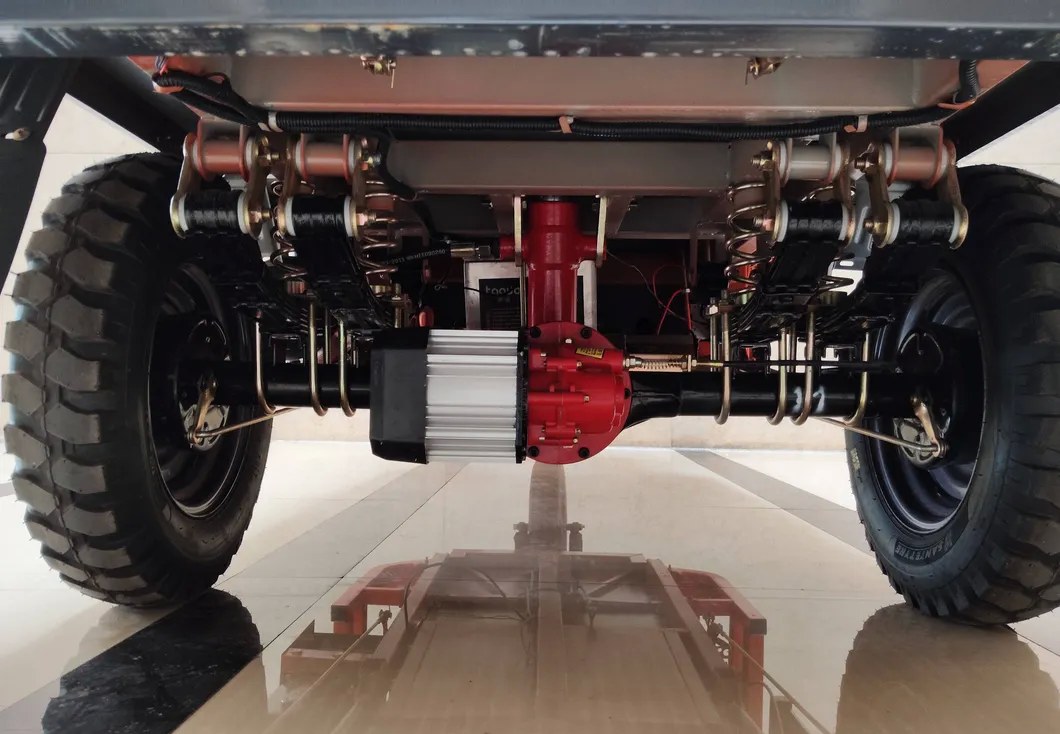

| Rear axle: | Changan integrated afterburner teeth pack rear axle, 180mm brake pot |
| Leaf spring: | 6 pieces/60mm*8mm steel plate, double steel plate |
| battery capacity: | 60V/58Ah/lead-acid maintenance-free battery |
| Motor: | 60V/1500W Permanent Magnet Synchronous Motor |
| Motor Control Unit: | 24 tubes |
| Charging time: | About 6 -8Hours/ |
| Wiring Harness: | IP54 Waterproof Level IP54/ |

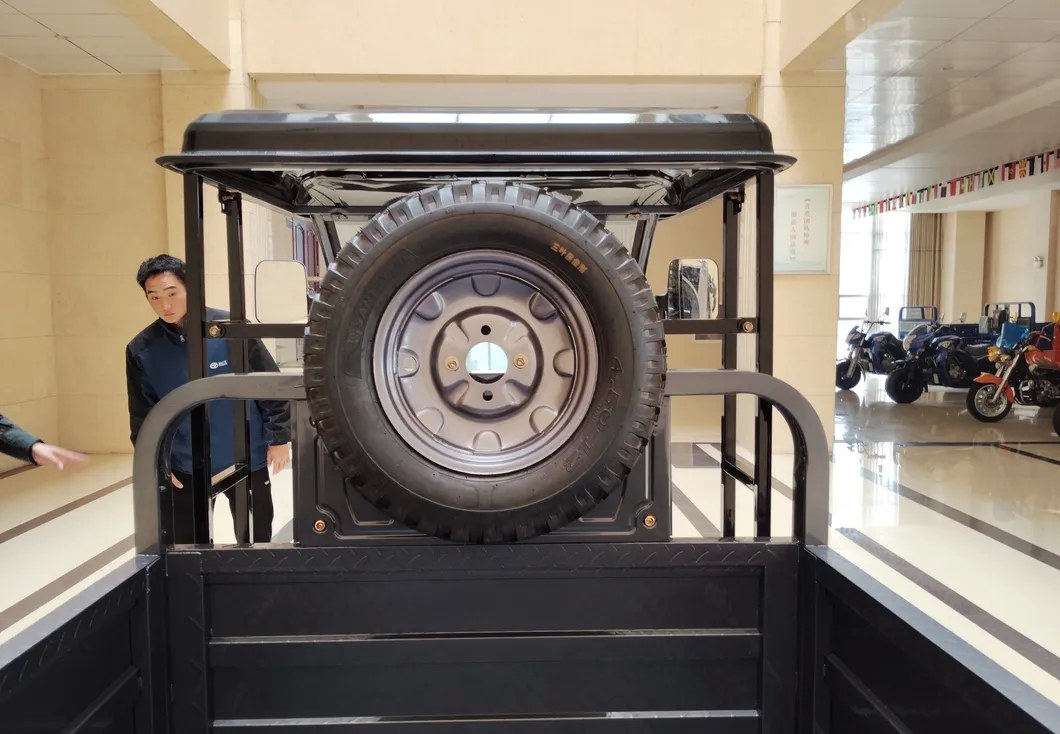

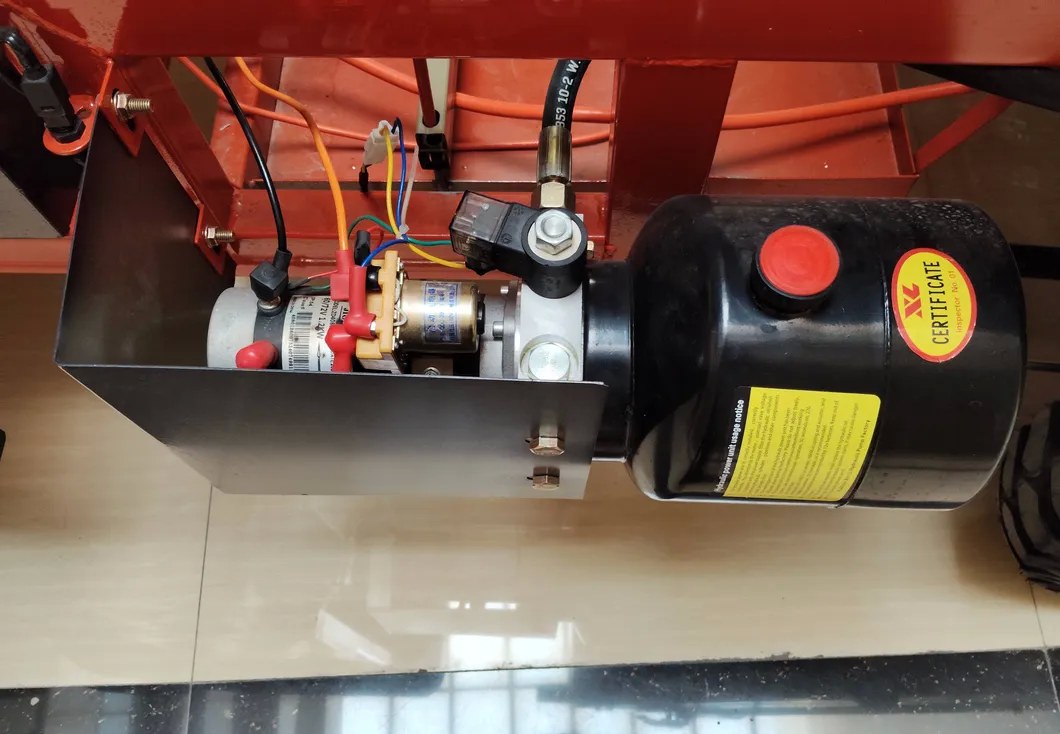

| Standard: | Electric hydraulic dump, simple front windshield, electric wipers, mobile phone charger, spare tire, helmet, air pump |
| Loading quantity: | 50 units CKD /40’HQ |
After Sales Service
Three-packing service,After-sales service 1 year
Our Advantages
1. Experienced team: We have an experienced team with more than 10 years of export experience. 2. High-quality products: Our products undergo strict quality control and testing to ensure that they meet the highest quality standards. 3. The company adopts a combination of industry and trade, which greatly provides convenience for customers. 4. Competitive prices: We offer competitive prices and flexible payment methods to meet customers’ budgets and needs. 5. Timely delivery: We are committed to delivering products on time.
